dotMod dotBox 200w Kit Review
The DotBox V2 Kit is DotMod's revised mainstream box mod offered as a kit with the Dot Tank Max. It is a compact, dual 18650 device with a maximum output of 220 W and a clear, straightforward user interface. The bundle keeps to DotMod's familiar aesthetic while pairing the mod with a 25 mm sub-ohm tank that uses Dot coils.
This article covers the design, controls, display, tank details, setup steps, performance and honest pros and cons for vapers considering the DotBox V2 220W Kit.
Key specifications
- Battery: Dual 18650 (external)
- Maximum output: 220 W
- Ohm detection range: down to 0.08 ohm, up to approximately 3.0 ohm
- Output modes: Power, Bypass, Ni, Ti, SS, Curve, Boost
- Screen size: 1.08 in
- Charging: USB Type-C
- Operating temperature range: -20 to +80 °C
- Coil example: 0.15 ohm mesh coil rated around 60-80 W

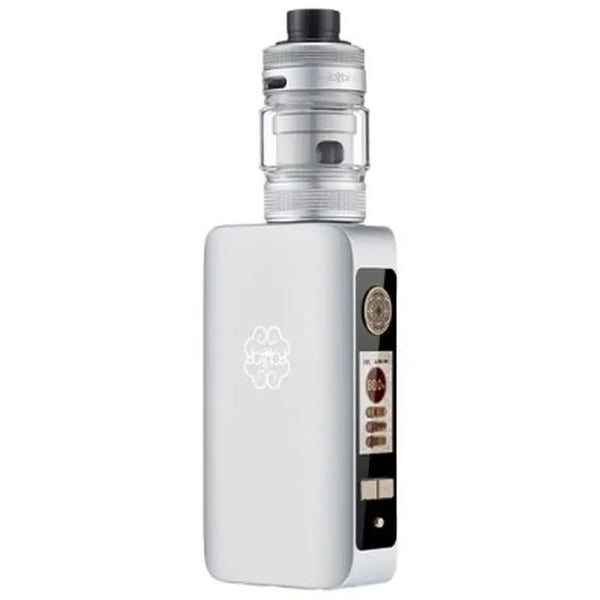

dotMod dotBox 220 V2 Vape Kit
A compact dual-18650 vape kit that pairs the DotBox V2 mod with the Dot Tank Max. It suits vapers who want a slim but capable high-power setup with straightforward controls, multiple output modes and a premium DotMod-style finish.
Best for
- Dual-battery users
- Straightforward controls
- Compact sub-ohm kits
DotBox V2 220W Kit design and build review
Form and finish

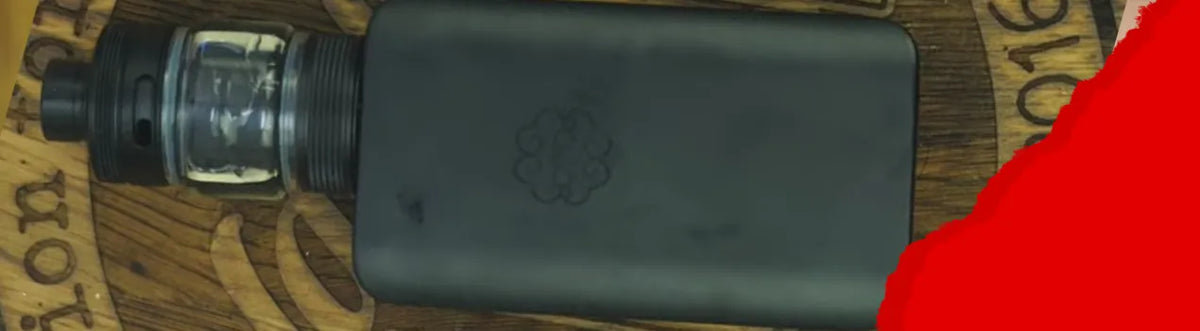

The mod follows DotMod's slim, rectangular box design with the brand logo on the side. It is compact for a dual-18650 device and sits comfortably in smaller hands. The finish looks premium but can attract and show fingerprints readily.
Controls and ergonomics
A centred fire button, two dedicated up/down buttons and a physical locking switch keep operation simple. The battery bay accepts two 18650 cells installed with a clear plus/minus orientation guide; a quick user guide is printed on the back of the device for convenience.
DotBox V2 220W Kit Display and menu
The screen measures 1.08 inches and has adjustable brightness plus a stealth mode that blanks the display. Navigation uses three-click entry to the menu and the up/down buttons to adjust settings. Key modes include power, bypass, temperature control (Ni, Ti, SS), curve, and boost. There is also a puff counter.
dotMod dotTank Max Ultra Light V2
The Dot Tank Max is a 25 mm sub-ohm tank designed for Dot coils and everyday direct-lung use. It combines top filling, an 810-style drip tip and indexed airflow control in a practical tank that complements the DotBox V2 well.
Best for
- Sub-ohm vaping
- Dot coil users
- Straightforward tank setups
Why choose it
It offers familiar Dot coil compatibility, a clean fit with the mod and a simple sub-ohm tank layout for vapers who want easy daily use without an overly complicated design.

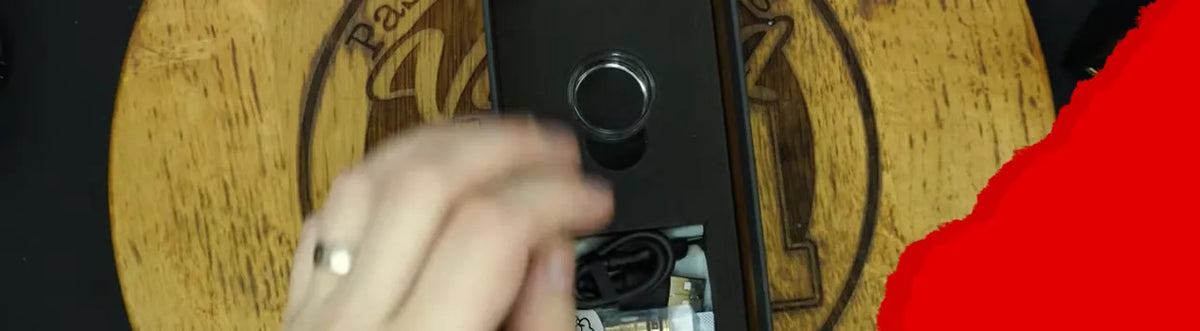

What you get in the box
- DotBox V2 mod (dual 18650)
- Dot Tank Max with pre-installed coil
- Spare bubble glass
- Spare coil
- USB Type-C cable
- Multi-language user manual
- Spare O-rings and stickers
dotMod dotCoil Replacement Coils for dotMod V2
Dot coils are the core consumable for the Dot Tank Max, delivering the sub-ohm mesh performance the kit is designed around. Keeping spare coils ready helps maintain flavour and vapour quality once the installed coil begins to fade.
Best for
- Replacing used coils
- Restoring flavour
- Daily sub-ohm use
A practical add-on for regular users of the DotBox V2 kit who want to keep the tank performing consistently.
dotMod dotBox 220 V2 Mod
The DotBox V2 box mod gives you the same slim dual-18650 chassis, straightforward controls and wide output range without being locked into the full kit. It is a good option if you already have a preferred tank.
Best for
- Using your own tank
- Dual-battery mod users
- Simple advanced controls
Dot Tank Max
The Dot Tank Max is a 25 mm sub-ohm tank supplied with a mesh Dot coil. It has an 810-style drip tip and accepts standard 810 tips. Top-fill ports are available under the top cap. The airflow uses a non-spinning, indexed control that locks into set positions rather than rotating freely.
The tank construction includes multiple screws at the base for assembly. The coil supplied in the kit is a mesh coil rated at 0.15 ohm and listed for roughly 60-80 W.
DotBox V2 220W Kit Setup and priming
- Fit batteries following the polarity markings and close the battery door.

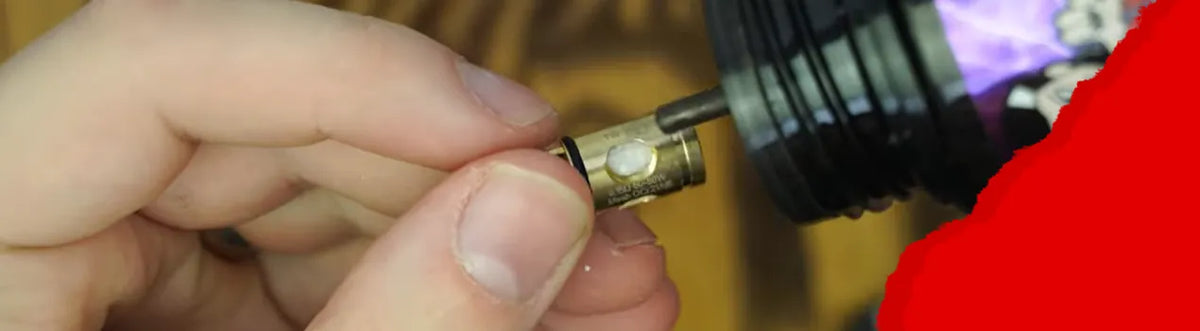

- Remove the coil for pre-wicking. Apply a few drops of e-liquid directly to the cotton and let it absorb.
- Reinstall the coil and assemble the tank. Fill via the top-fill ports and allow the coil a short rest so the cotton saturates.
- Start at a low wattage and slowly increase to the coil's recommended range. Do not fire a fresh coil at its maximum rating immediately.
These simple steps speed up wicking and reduce the chance of dry hits when first using a new coil.
18650 Batteries
The DotBox V2 uses dual external 18650 batteries, so a good pair of matched cells is essential. Choosing quality 18650 batteries helps the mod perform as intended and supports safer long-term use.
Best for
- Powering the kit
- Replacing worn cells
- Safe daily use
Performance notes
- Power range: 5 W to 220 W. The mod allows fine control at low wattages, with precise increments useful for mouth-to-lung setups or users who like to micro-adjust below 30 W.
- Temperature control modes cover nickel, titanium and stainless steel, and a curve mode lets you build custom power profiles. Boost mode provides a faster ramp by temporarily increasing output.
- Bypass mode runs near-battery voltage output for a mechanical-like experience.
Although the device can output up to 220 W, the Dot coils supplied with the tank are sub-ohm mesh coils rated in the tens of watts. Expect best results in the coil's recommended range rather than at the device's absolute maximum.
Safety and protections
The DotBox V2 includes the usual safety features: 10-second cut-off, short-circuit protection, low and high resistance warnings, and other built-in protections. USB Type-C charging is supported, though using an external charger for 18650 cells is recommended for best battery care.
Quick Comparison
| Product | Type | Battery | Power | Best for | Price |
|---|---|---|---|---|---|
| dotMod dotBox 220 V2 Vape Kit | Kit | Dual 18650 | Up to 220W | Compact all-in-one dual-battery setup | £67.99 |
| dotMod dotBox 220 V2 Mod | Box Mod | Dual 18650 | Up to 220W | Pairing with your own tank | TBA |
| dotMod dotTank Max Ultra Light V2 | Vape Tank | — | 25mm / 810 Tip | Dot coil sub-ohm users | £24.49 |
DotBox V2 220W Kit pros and cons
Pros
- Compact, slim dual-18650 form factor that fits smaller hands
- Straightforward menu and physical lock switch for quick secure operation
- Fine wattage control under 30 W for MTL or low-power users
- Supports a wide range of output modes, including temperature control and curve profiles
- Dot Tank Max uses familiar Dot coils and a standard 810 drip tip
Cons
- Finish shows fingerprints easily
- Tank sits close to flush on the mod; larger tanks may overhang
- The supplied Dot coils are optimised for mid-range wattages, so the device's 220 W ceiling is not relevant for the kit coil
- Airflow is indexed and not freely rotating, which limits infinitely adjustable airflow
Our verdict on the DotBox V2 220W Kit
The DotBox V2 220W Kit is a pragmatic, well-built option for vapers who want a compact dual-18650 mod with straightforward controls and a familiar Dot coil platform. Its strengths are simplicity, precise low-watt control and a reassuring set of output modes. If you plan to use the included Dot coils and the Dot Tank Max, expect the best performance in the coil's recommended wattage range rather than at extreme outputs.
For vapers who value a clean, slim design and clear, no-nonsense operation, the DotBox V2 offers a solid balance of features and usability.
