Voopoo Drag 6 Box Mod Review
The VooPoo Drag 6 is a compact box mod with a dual internal battery configuration. The unit reviewed is the metal grey variant and ships with VooPoo's wheel control system for adjusting settings. The device is reported to use two 2,000mAh cells giving a stated maximum capacity of 4,400mAh.
Key points covered here include design, user interface, chipset and performance, real-world use with tanks and rebuildables, and practical pros and cons for experienced vapers.
Key functional highlights
- Compact box mod with dual internal battery setup
- Stated battery capacity: 4,400mAh
- Maximum output: up to 220W
- Chipset: Genie TT 3.0
- Modes: Smart, RBA and temperature control
- Controls: tactile click wheel and fire button
- Charging: USB Type-C via side flap
- Connection: 510 platform for broad tank compatibility
Voopoo Drag 6 Box Mod
The VooPoo Drag 6 is built for vapers who want a straightforward box mod with modern controls and no need to swap external cells. Its click wheel navigation, internal dual-battery setup and Genie TT 3.0 chipset make it a practical option for users who value ease of use and consistent performance.
Best for
- Simple daily use
- Tank and RBA compatibility
- Users who prefer internal batteries
Why choose it
If you want a tactile, fuss-free mod that works well with tanks and rebuildables while keeping setup simple, the Drag 6 offers strong everyday usability without overcomplicating the experience.
Design and build

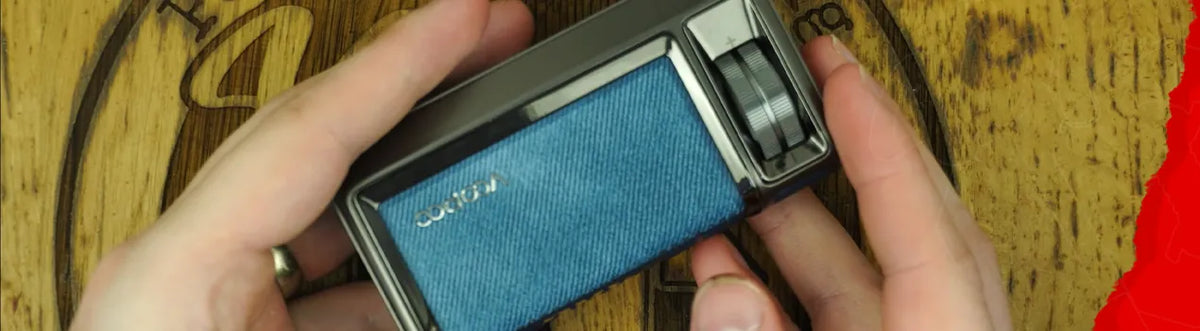

The Drag 6 follows VooPoo's recent aesthetic with textured panels and a gunmetal-style finish. The wheel control sits on the face and provides tactile click adjustments. The device uses a 510 platform for atomiser compatibility.
There are a few noteworthy design observations:
- The wheel gives clear tactile feedback when changing wattage and settings.
- A textured back panel appears aimed at improving grip, particularly for users who hold the mod in a hammer style.
- One minor criticism is a finish mismatch on the front panel or logo area compared with the rest of the gunmetal finish.
- The chassis and internal layout give the impression that the design could have supported external 18650 cells, suggesting the internal battery choice was deliberate and likely aimed at simplifying use.

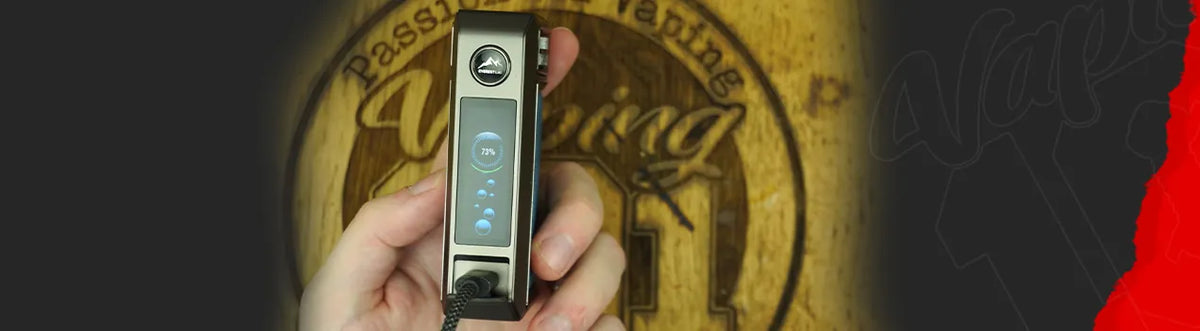

USB Type-C charging is accessed behind a small side flap for straightforward top-up charging.
User interface and controls

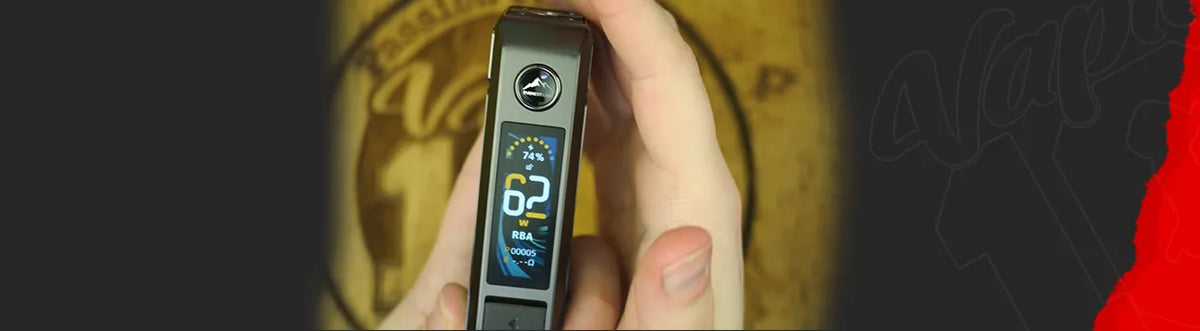

The Drag 6 uses a click wheel for navigation, with a simple sequence to enter menus: press the fire button three times, then use the wheel up and down. The menu structure is intentionally pared back to the essentials.
Main modes and options include:
- Smart mode: automatically reads the coil and prevents the wattage being set above a safe level for that coil while allowing any lower wattage.
- RBA mode: manual wattage control intended for rebuildables or when you want full control over output.
- Temperature control, labelled PCR in the menu, for basic temperature control options.
- Themes and an animation toggle for on-vape display behaviour.
- Lock settings: you can lock the screen, the fire button and the wheel independently.
A useful safety note: when the screen is off the wheel is locked and cannot change wattage, so accidental adjustments while the device is idle are unlikely.
Chipset and performance
The Drag 6 is powered by VooPoo's newer Genie chipset, specified as the Genie TT 3.0. Key figures provided are:
- Resistance range: 0.05 ohm to 3.0 ohm
- Maximum output: up to 220 watts
Because the batteries are internal and the wiring is direct to the board, the mod fires quickly and consistently compared with devices that rely on external cell contacts. That said, while the device can reach 220W, the combination of internal cell capacity and intended use suggests extremely high wattages are not the target use case.
Tank compatibility and kit contents

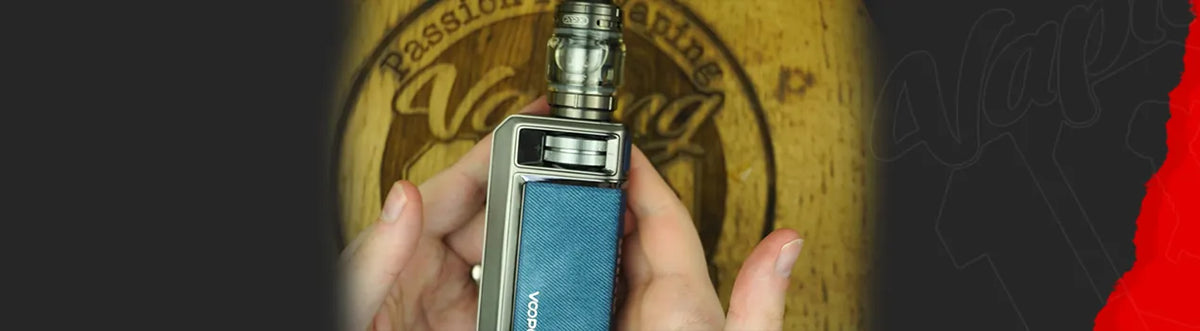

The kit example includes the U Force X2 tank. The platform is compatible with a wide range of atomisers:
- Sub-ohm and restricted direct-lung tanks
- RDAs and other rebuildables
- MTL tanks can be used as well; a compact MTL tank was observed firing fine on the device
The simple user interface and the inclusion of a versatile tank in the kit indicate VooPoo is targeting users who want straightforward setup without fiddling with external batteries.
Practical use and setup tips
- Charging: use the side-access USB-C port for charging. Flip open the side flap and plug in a USB-C cable.
- Locking: familiarise yourself with the lock settings so the wheel, screen and fire button behave as you prefer during storage and in pockets.
- Smart mode: leave the mod in smart mode if you prefer the device to limit wattage to safe levels for the coil installed. It is helpful for users who switch coils frequently.
- Wattage caution: although the mod supports 220W, the internal battery configuration and stated capacity make it sensible to avoid sustained high-wattage use.
Who this suits
The Drag 6 is best suited to vapers who want a fuss-free experience with a few modern conveniences:
- Beginners or users who prefer internal batteries over swapping cells
- Vapers who favour restricted direct-lung or mouth-to-lung setups and value simple, reliable control
- Users who appreciate a tactile, non-touch interface and a compact, well-textured device
More advanced users who prefer replaceable 18650 cells may find the internal battery approach limiting.
Real-world use
In everyday use, the Drag 6 is aimed more at practical vaping than headline wattage figures. It works well with a broad range of tanks and rebuildables, and its internal battery design keeps ownership simple for users who do not want to carry spare cells or an external charger.
The wheel control and simplified menu system help keep operation direct and intuitive, especially for users who want to fit a tank, set a wattage and vape without digging through complicated menus.
Quick Comparison
| Product | Type | Battery / Size | Power / Fit | Best for | Price |
|---|---|---|---|---|---|
| Voopoo Drag 6 Box Mod | Vape Kit | Dual Internal Battery | Up to 220W | Simple high-power kit use | TBA |
Pros and cons
Pros
- Tactile wheel control with clear feedback makes adjustments quick and intuitive
- Genie TT 3.0 chipset covers the essentials: smart mode, RBA and temperature control
- Fast, consistent firing thanks to internal battery wiring
- USB-C charging for convenience
- Compatible with a wide range of tanks and rebuildables
Cons
- Internal batteries rather than replaceable cells may be a negative for users who prefer quick battery swaps
- Maximum 220W output is available but not ideal for regular high-wattage use given the internal cell capacity
- Minor finish mismatch on the logo or panel noted in this variant
Final thoughts
The Drag 6 is a practical, approachable box mod that trims unnecessary complexity and focuses on core features. The wheel control offers a different, tactile way to manage wattage and menus, while the Genie TT 3.0 chipset provides the basic modes most users need. The internal dual-battery approach simplifies ownership but will not appeal to those who prefer replaceable cells. Overall, the Drag 6 looks intended for users who want a plug-and-play mod for restricted direct-lung and MTL-style setups rather than extreme-wattage performance.
